Overview
PURIMAR

PURIMAR is a safe and eco-friendly vessel ballast water treatment system that meets IMO D-2 standards by effectively eliminating harmful organisms to the ecosystem and underwater environment, and reduces and discharges active materials used from sterilizing process to meet environmental standards.

PURIMAR has acquired the IMO basic approval and the final approval in October 2010 and July 2011 respectively. In October 2011, it gained the governmental type approval. In October 2013 and May 2014, it gained the USCG AMS (Alternate Management System) approvals for the round electrode model and the improved round electrode model respectively. PURIMAR has also acquired the USCG type approval in June 2018.

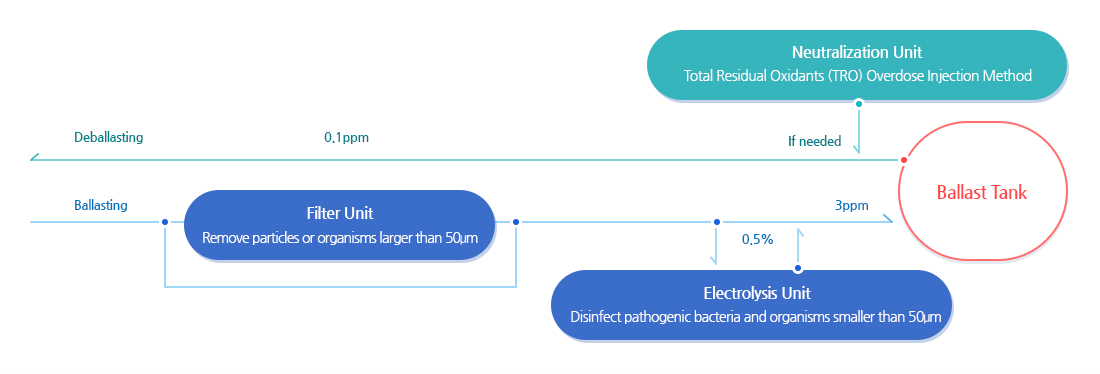

System Components
  1. step 01.Mechanical Filtering
  2. step 02.Electrolysis Sterilization
System Components

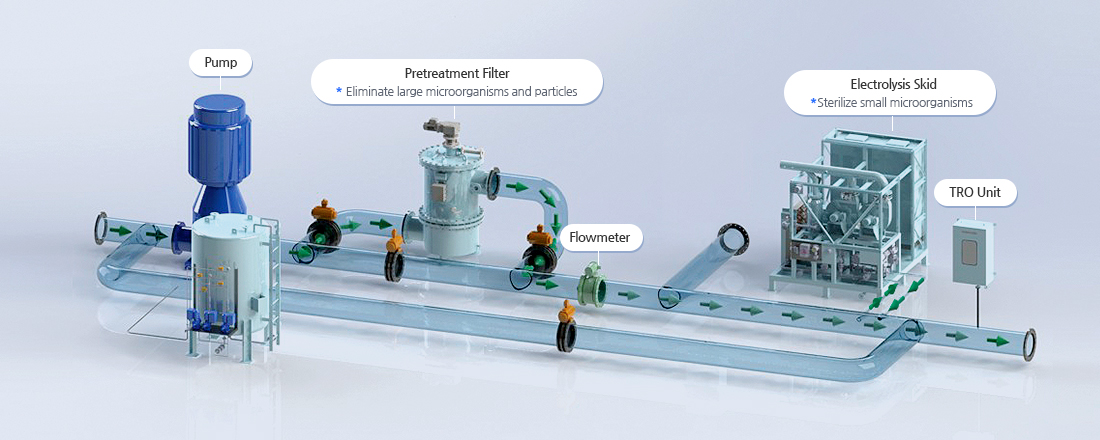

Ballasting Mode
Ballasting Mode

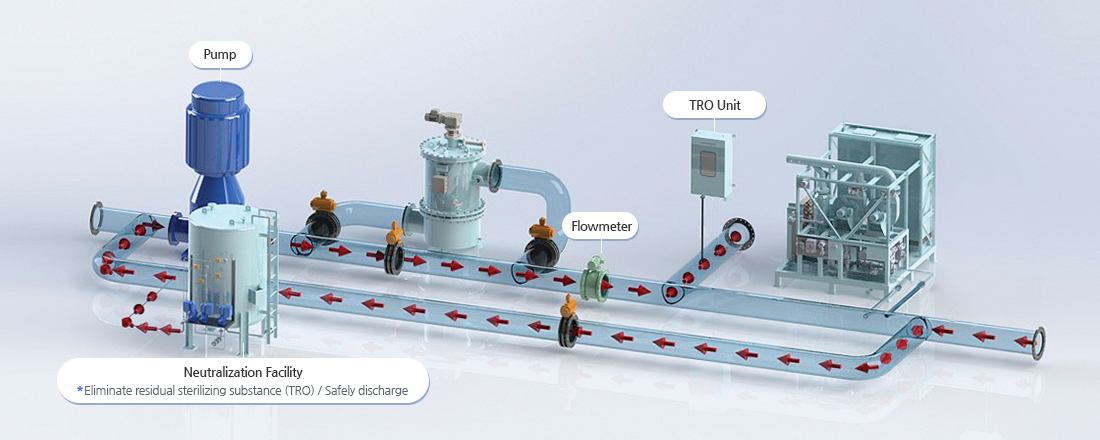

Deballasting Mode
Deballasting Mode

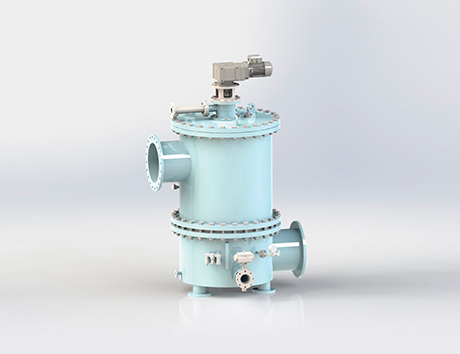

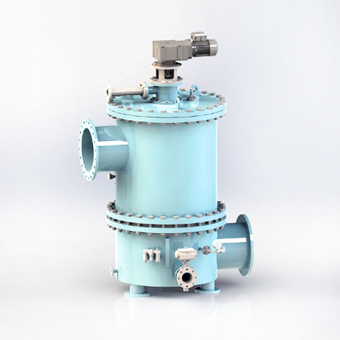

  • Pretreatment Filter
    Pretreatment Filter
    (Filter)

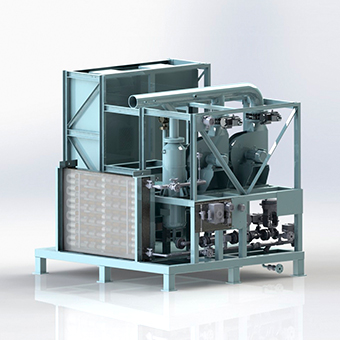

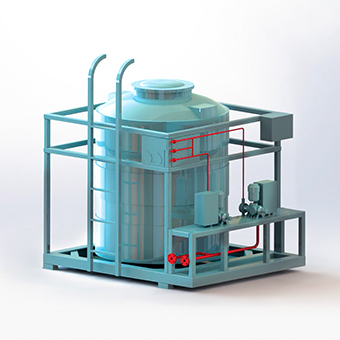

  • Electrolysis Facility
    Electrolysis Facility
    (Electrolysis skid)
  • Neutralization Facility
    Neutralization Facility
    (Neutralization)
Products
Specifications
MODEL BALLAST WATER FLOW (㎥/hr) POWER CONSUMPTION (Kw) *) FOOTPRINT(㎡)
SP-50 500 12.7 9.7
SP-100 1,000 20.7 10.4
SP-150 1,500 30.4 10.8
SP-200 2,000 38.1 12.5
SP-250 2,500 47.5 12.8
SP-300 3,000 55.8 13.5
SP-350 3,500 66.6 14.1
SP-400 4,000 74.2 15.2
SP-450 4,500 83.0 16.2
SP-500 5,000 95.1 17.7
SP-550 5,500 102.4 19.2
SP-600 6,000 110.4 19.7
SP-700 7,000 164.7 24.2
SP-800 8,000 184.3 25.8
SP-900 9,000 203.8 28.0
SP-1000 10,000 223.4 39.6

- Power Consumption : Operating condition 20deg.C, 30PSU, excluding backflushing power
* PURIMAR has the explosion-proof model about each treatment capacity.

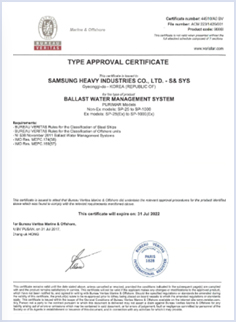

Certificates

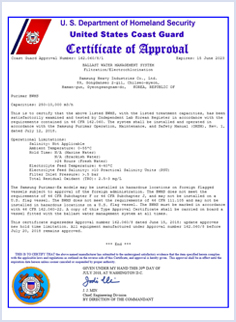

USCG
USCG

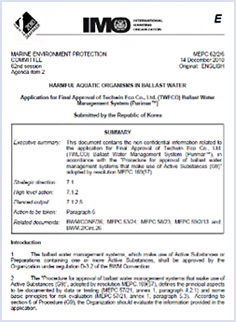

IMO Final approval
IMO Final approval

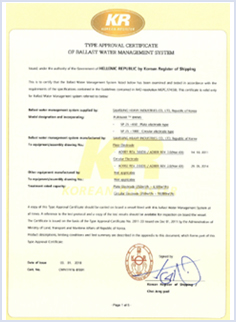

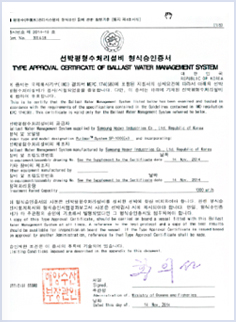

Type approval
Type approval

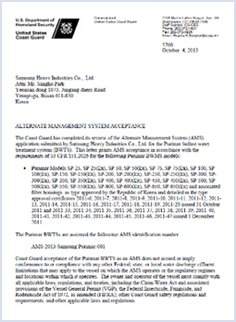

USCG AMS
USCG AMS

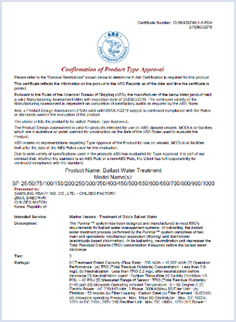

ABS Type approval
ABS Type approval
BV Type approval
BV Type approval
Greek Type approval
Greek Type approval
Functions & Features

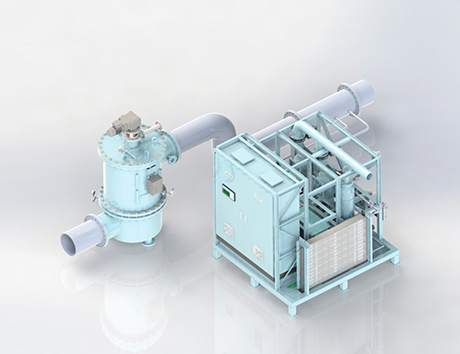

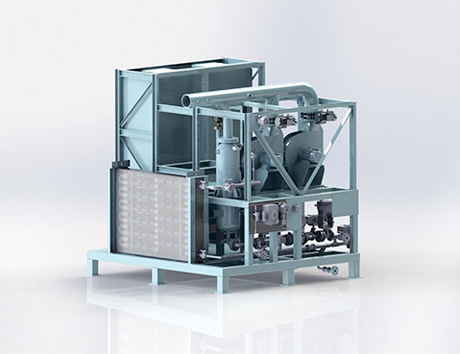

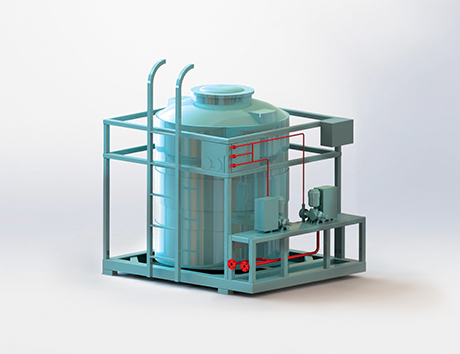

Skid System
Skid System Skid System
Modularization System

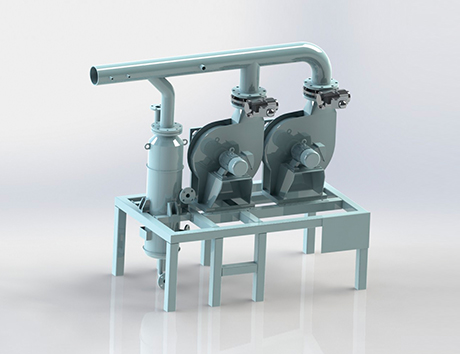

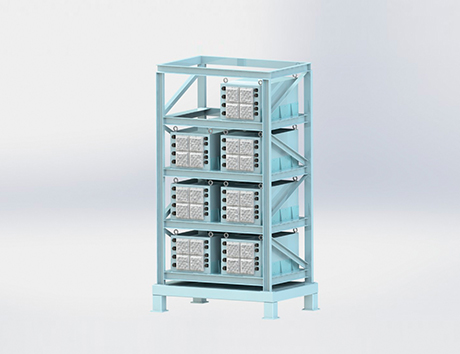

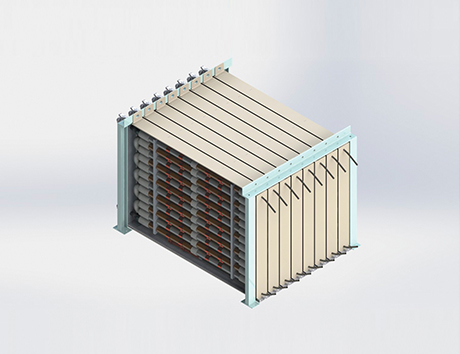

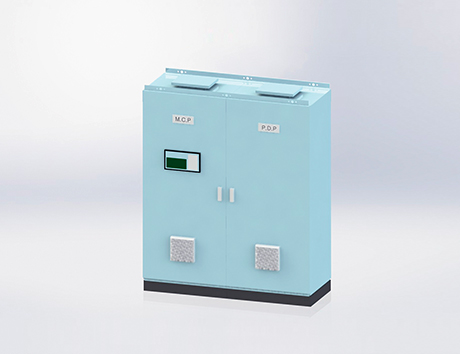

Neutralization Unit Hydro Cyclone & Blower Electrolyzer Filter Unit Rectifier MCP & PDP
Neutralization Unit Hydro Cyclone & Blower Electrolyzer Filter Unit Rectifier MCP & PDP

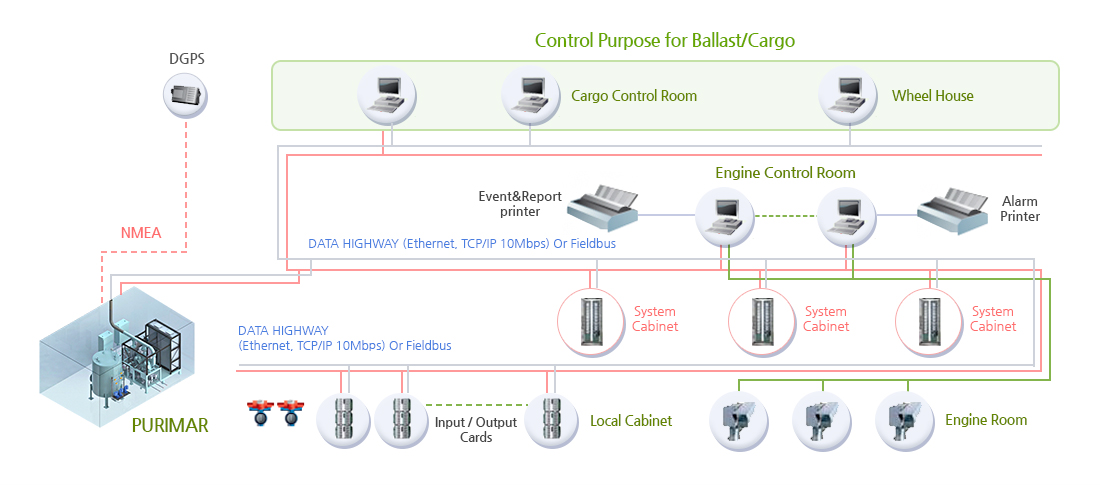

System integration with Vessel Automation System
System integration with Vessel Automation System

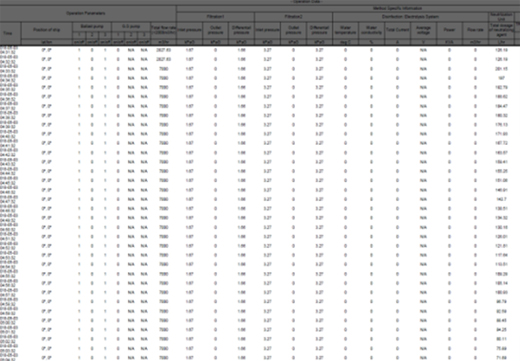

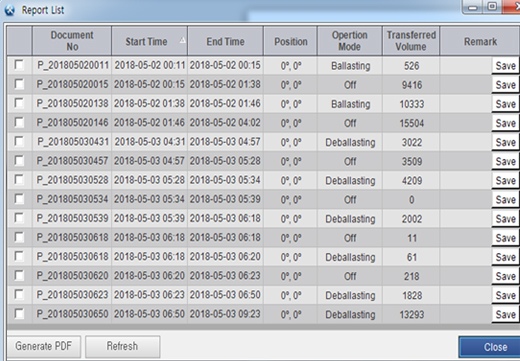

Report
  • Report
  • Report

- Capability to print out reports on (de)ballasting history and various records for 2 years

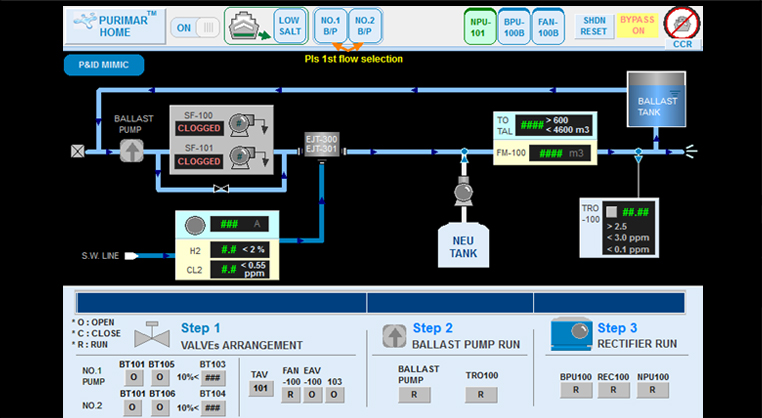

GUI

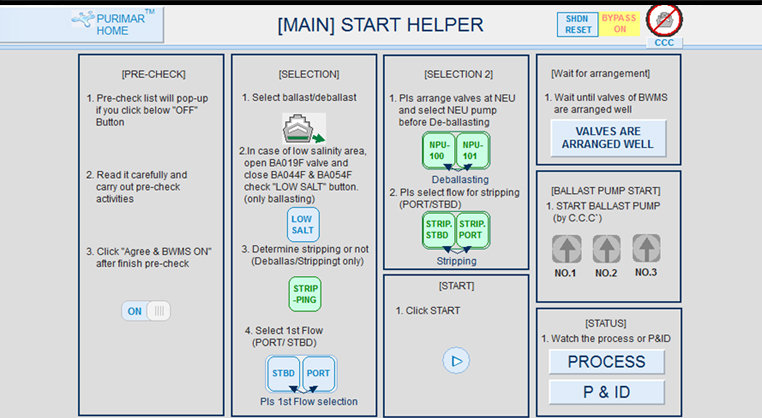

System Procedure Simple Mimic
System Procedure Simple Mimic
Features
  • Cost Saving
    Cost Saving
    1. 1. Cost saving (CAPEX / OPEX)
    2. 2. Maximize service life of facilities
  • Easy Installation
    Easy Installation
    1. 1. Offering a variety of installation options for better utilization of space
    2. 2. Implementing modular system
  • Safety Design
    Safety Design
    1. 1. Stable system design
    2. 2. Using highly reliable control technologies
    3. 3. Type approval and Class certification
  • World Best Ship Building Company
    World Best Ship Building Company
    1. 1. Ample performance records across all ship types
    2. 2. 40 years of experience in the marine shipbuilding industry
    3. 3. Advanced proprietary technologies in the facility control of marine shipbuilding
PURIMAR - RETROFIT

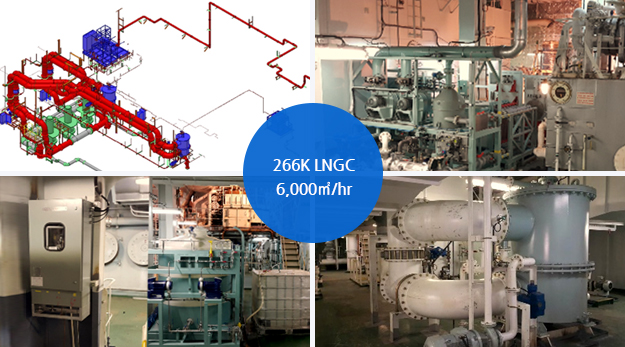

PURIMAR Retrofit Reference
PURIMAR Retrofit Reference
Item Division
Case1 Equipment Only
Case2 Equipment + Design for Installation
Case3 Turn key base

(Equipment + Design for Installation +
Installation)

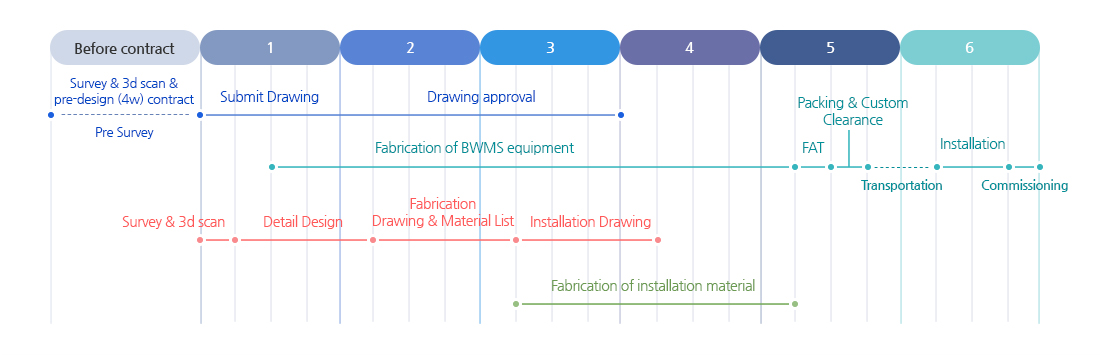

Master Schedule
Master Schedule
* Installation period could be changed according to the repair shipyard ability or D/D period.
